Unravelling the Wonders of Particle Swarm Optimization

Exploring Efficiency, Adaptability, and Real-world Applications

Introduction

Particle Swarm Optimization (PSO) stands at the forefront of bio-inspired search algorithms, offering a unique approach to solving minimization or maximization problems. Drawing inspiration from the collaborative foraging behavior of fish and birds, PSO empowers particles to share their discoveries, collectively striving for optimal solutions. This article delves into the intricacies of PSO, shedding light on its mathematical foundations, exploration-exploitation trade-offs, and diverse real-world applications.

The Mathematical Model

Assume we have

\(\text{P Particles: }\{1, 2, ..., i, ..., P\} \)

\(\text{Objective Function: }f(X)\)

During program execution, the algorithm keep tracks of:

\(\text{Position of particle } i \text{ at iteration } t \text{: } X^i(t)=(x^i(t), y^i(t))\)

\(\text{Velocity of particle } i \text{ at iteration } t \text{: } V^i(t)=(v^i(t), v^i(t))\)

At each iteration, each particle updates its position by summing the old position and current velocity.

\(X^i(t+1)=X^i(t)+V^i(t+1)\)

The Velocity is more complicated. We have to sum up each component:

\(V^i(t+1) =wV^i(t)+c_1r_1(pbest^i - X^i(t)) + c_2r_2(gbest - X^i(t))\)

• The Inertia component represents the continual velocity of a physical particle; where w is denoted as the inertia weight constant.

\(\text{Inertia: } wV^i(t) \)

• The issue is we have to consider the personal factor where each particle has previous personal best positions. The Cognitive component is a product of the cognitive coefficient (c1), a random number between 0 and 1 to give the erratic behaviour (r1) and the difference between the personal best position and the current position of particle i, which produces the vector direction to the personal best position.

\(\text{Cognitive: } c_1r_1(pbest^i - X^i(t)) \)

• Similar to the Cognitive component, we have to consider the social factor where each particle tends to follow the swarm. This component is a product of the social coefficient (c2), a random number between 0 and 1 to give the erratic behaviour (r2) and the difference between the global best position of all particles and the current position of particle i, which produces the vector direction to the global best position.

\(\text{Social: } c_2r_2(gbest - X^i(t))\)

This iterative process, driven by cognitive and social coefficients (c1 and c2) and an inertia weight constant (w), facilitates a dynamic balance between exploration and exploitation. By incorporating randomness and collective intelligence, PSO navigates complex problem landscapes with remarkable efficiency.

Exploring the Exploration-Exploitation Trade-off

Exploitation involves choosing the best-known option based on past experiences, while Exploration involves trying out new options that may lead to better outcomes.

The effect of changing each hyperparameter (w, c1, and c2) on convergence can be explored via simulation

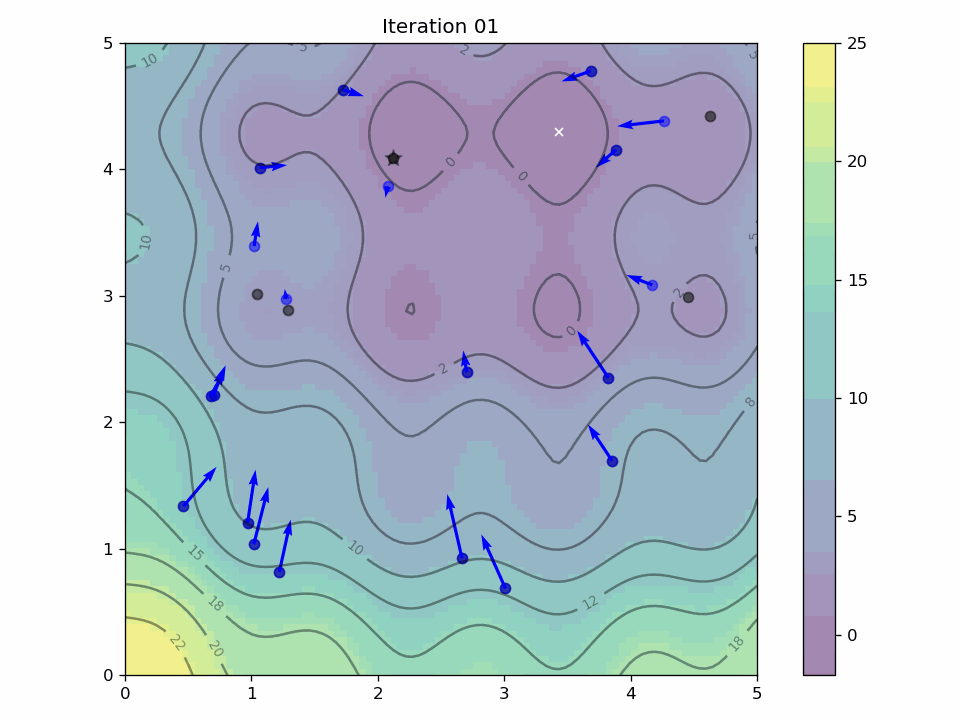

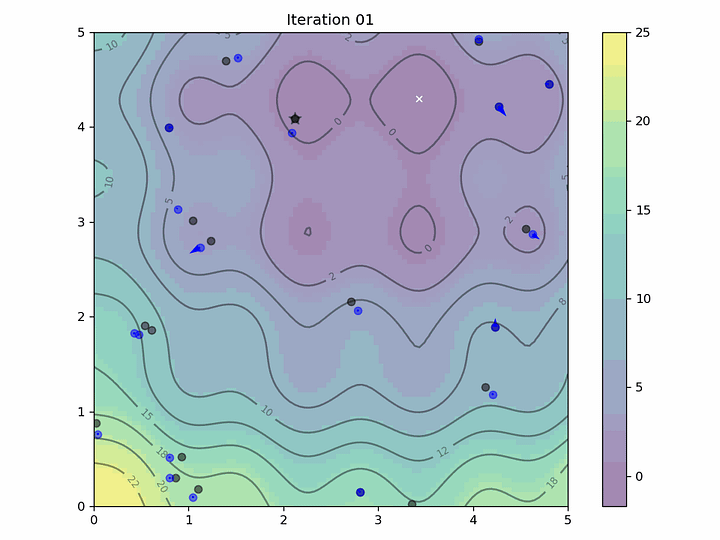

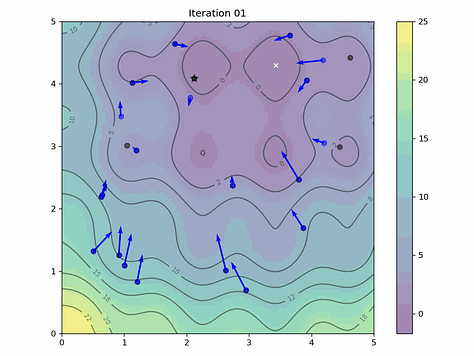

Evaluating w=0, w=0.5, w=1

left w=0, middle w=0.5, right w=1

• In PSO, the inertia weight constant (w) plays a pivotal role in balancing the exploration and exploitation aspects of the algorithm.

• When w=0, the particles entirely discard their previous velocities, leading to a focus on exploitation. Conversely, when w=1, particles heavily weigh their previous velocities, favoring exploration.

• The key to harnessing the power of PSO lies in dynamically adjusting w during program execution. Starting with w=1 encourages broad exploration, allowing particles to traverse the search space comprehensively. As the algorithm progresses and particles begin to converge towards the global minimum, w can be gradually decreased. Reducing w to 0.8, then to 0.5, and even lower to 0 as particles approach the global minimum enables a nuanced balance between exploration and exploitation.

• This dynamic adjustment ensures that PSO explores extensively in the beginning, gradually refines its solutions, and converges effectively towards the optimal solution as the iterations progress.

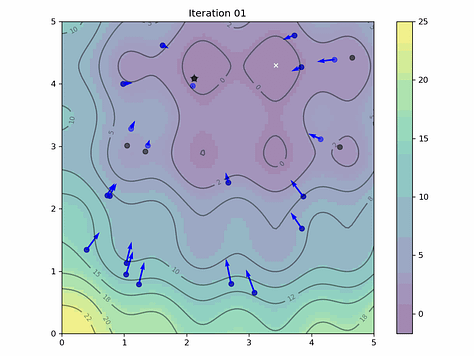

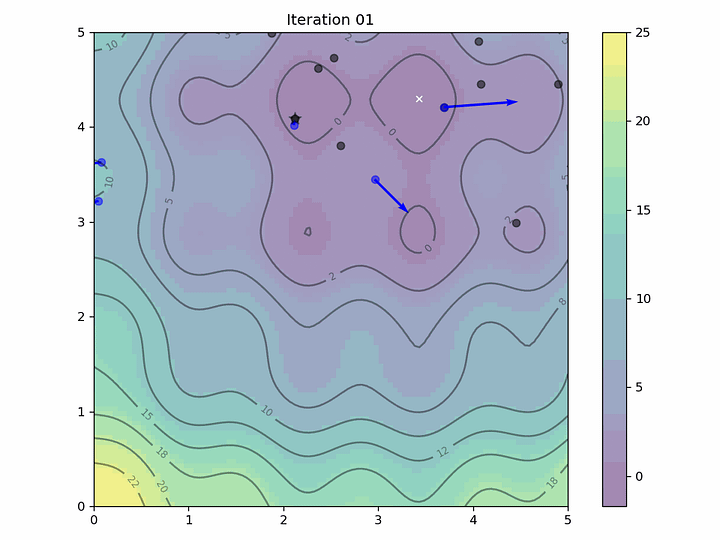

Evaluating c1=0 and c2=2 vs c1=2 and c2=0

left c1=0 and c2=2, right c1=2 and c2=0

• In PSO, adjusting the cognitive coefficient (c1​) and social coefficient (c2) critically determines the equilibrium between exploration and exploitation.

• When c1=0 and c2=2, the algorithm emphasizes exploration, encouraging particles to heavily explore the search space. This heightened exploration allows the algorithm to converge effectively as it diligently searches for optimal solutions.

• In stark contrast, with c1=2 and c2=0, the emphasis shifts entirely to exploitation. In this scenario, particles prioritize their initial velocities and personal best positions, sidelining the global best position. This high exploitation approach often leads to premature convergence, hindering the algorithm's ability to thoroughly explore the search space.

• The delicate balance between c1​ and c2 plays a pivotal role in ensuring PSO strikes an optimal ratio between exploration and exploitation, thus enabling it to converge efficiently while avoiding premature convergence pitfalls.

Efficiency and Parallelization

PSO's efficiency stems from its independence from the gradient of the objective function. This characteristic makes it suitable for functions that are challenging to differentiate. Additionally, the algorithm's parallelizability enhances its scalability. Each particle's update can occur independently in parallel, significantly reducing computation time. PSO's compatibility with parallel processing architectures, such as map-reduce, amplifies its utility in large-scale optimization tasks.

Real-world Applications

Beyond theoretical prowess, PSO finds practical applications across various domains. One notable application involves dimensionality reduction in classification tasks. By integrating PSO with classifiers like Decision Trees and K-Nearest Neighbors, researchers enhance the accuracy and efficiency of anomaly detection systems. The collaborative nature of PSO allows it to adapt to intricate patterns within datasets, making it a valuable asset in data-driven decision-making processes.

Conclusion

Particle Swarm Optimization stands as a testament to the ingenuity of nature-inspired algorithms. Its ability to balance exploration and exploitation, coupled with its efficiency and adaptability, renders it indispensable in modern problem-solving paradigms. As technology advances, PSO continues to inspire novel solutions, empowering researchers and practitioners to navigate the complexities of optimization problems with finesse and efficacy.
